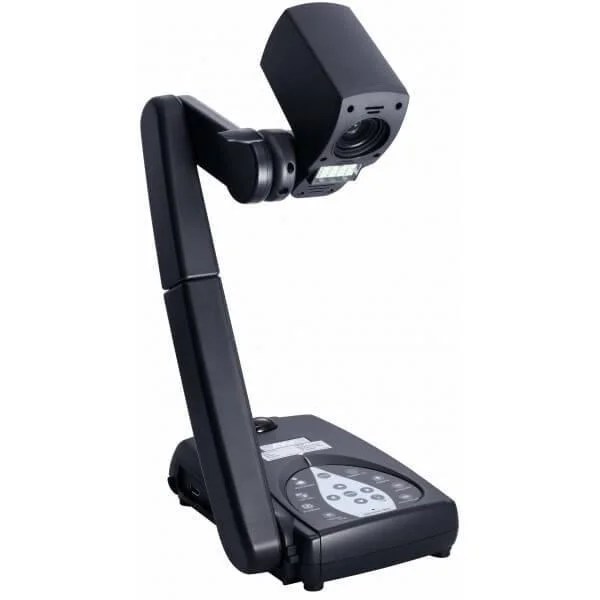

Image Sensor 1/3.2? CMOS Pixel Count 5 megapixels Effective Pixel 2592 H x 1944 V Frame Rate 30 fps (max.) White Balance Auto / Manual Exposure Auto / Manual Image Mode Sharp / Graphics / Motion / Microscope / Macro / Infinite Effect Color / B/W / Negative / Mirror / Rotate / Freeze RGB Output 1920×1080, 1600×1200, 1280×1024, 1280×720, 1024×768 HDMI Output HD 1080p; HD 720p Composite Output ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?? 720×480 (NTSC) Optics Focus Auto / Manual Shooting Area ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? Max. 16.54? x 12.4? (420mm x 315mm) Zooming 12X Optical 16X Digital Zoom (Total = 192X) Function Image Effect Color / B&W / Negative / Mirror / Reverse / Freeze White balance/exposure/night view ? ? ? ? ? ? ? ? ? ? ? ? ? ? Auto / Manual Picture-in-picture Yes Split Screen Yes Presentation Tools Spotlight (Yes), Visor (Yes) Capture Mode Single / Continuous Remote Control Yes Image Storage 240 Frames(XGA) ; 80 Frames(5M Pixel) Onboard AV Recording Yes, SD/SDHC/USB Onboard Annotation Yes, works with any HID device (eg. Mouse, AP20T Interactive Pen) Compatibility Operating Systems Windows XP SP3 (32-bit), Windows Vista (32/64 bit), Windows 7 (32/64 bit) Mac OS X 10.5.8 or above (Intel based) AVer Software AVer Academy Suite (Sphere, PowerPoint Plug-in, Flash-Plug-in), A 1.7, AVerVision 4 Interactive Whiteboard Compatibility ? ? ? ? ? ? ? ? ? ? ? ? ? Yes with AVerVision Flash Plug-in MS PowerPoint Yes with PowerPoint Plug-in (Windows only, MS PPT 2007 or above) Power Power Source DC 12V, 2A, 100-240V, 50-60Hz Consumption 16.8 Watts (lamp off); 18 Watts (lamp on) Lighting Lamp Type ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?? LED light Input/Output Connections RGB Input 15-Pins D-sub (VGA) RGB Output 15-Pins D-sub (VGA) HDMI Output HDMI CVBS/RS-232 Mini-DIN Jack (use CVBS/RS-232 Adapter cable) Composite Video RCA Jack USB Mini-USB (Connect to PC)? Type-A (Connect? to USB Flash Drive, AP20 Interactive Pen) SD SD/SDHC (Up to 32GB) DC 12V Input Power Jack MIC Input 3.5mm jack, pink Speaker Output 3.5mm jack, green Dimension Operating 17.79? x 7.16? x 19.84? 452mm x 182mm x 504mm ( /-2mm include rubber foot) Folded 14.45? x 7.16? x 2.48? 367mm x 182mm x 63mm ( /-2mm include rubber foot) Weight 4.63 lbs (2.1kg) External Storage Secure Digital (SDHC) 1GB ~ 32GB (FAT32) USB Flash Drive 2GB ~ 64GB (FAT32) Package Contents M70 RS-232/CVBS Cable 3′ USB Cable (Mini type) RGB Cable Power Adapter Software CD User Manual CD Carrying Bag Remote Control (including batteries) Anti-glare Sheet Warranty Card Quick Guide Optional Accessories Microscope Adapter Part number: VISIFSEMA Light Box Part number: VISSPC3LB Anti-Glare sheet Part number: PANTIGLA1 (A5 size 8.26? x 5.84?) AP20T Interactive Pen Part number: PEN2TEAPK
